Titan 740i Airless Paint Sprayer Parts

Find parts for the original Titan 740i using owner manual 313-1695C (0808). High rider: 800-120 / 800-121. Low rider: 800-122 / 800-123.

Click a numbered marker to highlight its row of OEM and aftermarket choices. Use Enlarge drawing to zoom and scroll, or open the full-size image. Match your model, configuration, and part number before ordering.

Blue markers have catalog matches. Gray markers identify parts with no confirmed catalog match.

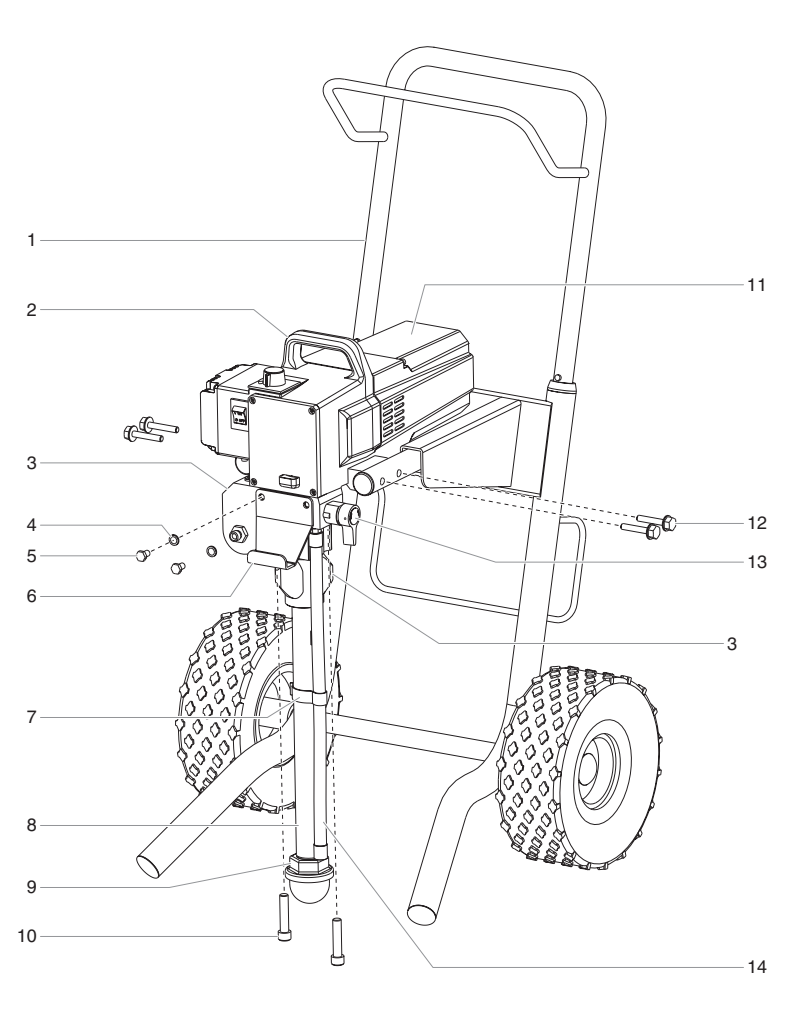

Main Assembly

For original Titan 740i models: high rider 800-120 (bare) and 800-121 (complete); low rider 800-122 (bare) and 800-123 (complete). The drawing shows the high rider configuration. Items 2, 3, and 11 lead to the separate gearbox, pump, and motor sections. Labels are listed at the end of the table.

Enlarge drawingFull-size image

Titan 740i Main Assembly numbered parts diagram

1 11 2 3 4 12 5 13 6 3 7 8 9 10 14

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	800-570 — High Rider cart assembly No confirmed catalog match
2	See assembly — Gearbox assembly View Gearbox Assembly
3	See assembly — Fluid section assembly View Fluid Section / Pump
4	763-552 — Lock washer Titan 763-552 (OEM)
5	710-033 — Screw Titan 710-033 (OEM)
6	704-304 — Pail hook Titan 704-304 (OEM)
7	730-334 — Hose clamp Titan 730-334 (OEM)
8	705-054 — Siphon tube (High Rider) Titan 705-054 (OEM)
9	710-046 — Inlet screen, 10 mesh (High Rider) Titan 710-046 (OEM) Prosource 710-046PRO (Aftermarket)
10	704-117 — Screw Titan 704-117 (OEM)
11	See assembly — Motor assembly View Motor Assembly
12	761-178 — Screw Titan 761-178 (OEM)
13	800-915 — PRIME/SPRAY valve assembly Bedford 29-2835 (Aftermarket)
14	702-239 — Return hose (High Rider) Titan 702-239 (OEM) Prosource 702-239PRO (Aftermarket)
Label	313-1691 — 740i logo label 313-1673 — Injection/explosion warning label 313-1847 — Shock hazard label 313-1715 — Pressure control knob label 313-1743 — Indicator lights label 313-1638 — Titan front label 313-1906 — Infinity logo label Titan 313-1638 (OEM) Titan 313-1673 (OEM) Titan 313-1906 (OEM)

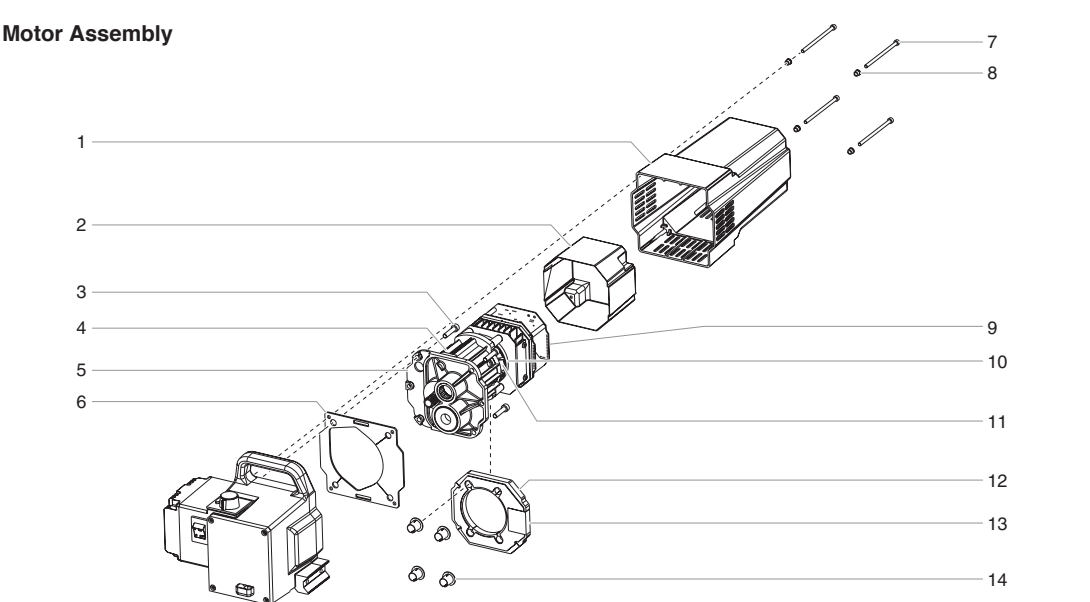

Motor Assembly

For the 120V motor and electronic control shown in this manual. Motor 800-211 includes the front end bell and fan components at items 5 and 10–11. Match the motor and controller part numbers before ordering.

Enlarge drawingFull-size image

Titan 740i Motor Assembly numbered parts diagram

7 8 1 2 3 4 9 10 5 6 11 12 13 14

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	800-465 — Motor shroud No confirmed catalog match
2	705-063 — Electronic cover Titan 705-063 (OEM)
3	700-681 — Screw Titan 700-681 (OEM)
4	800-211 — Motor assembly, 120V (includes items 5 and 10–11) Titan 800-211 (OEM)
5	800-209 — Front end bell assembly w/bearings No confirmed catalog match
6	704-331 — Housing gasket Titan 704-331 (OEM)
7	704-181 — Screw No confirmed catalog match
8	704-332 — Screw grommet Titan 704-332 (OEM)
9	800-213 — Electronic control assembly, 120V Titan 800-213 (OEM)
10	800-215 — Fan shroud No confirmed catalog match
11	800-294 — Fan assembly No confirmed catalog match
12	800-427 — Baffle assembly No confirmed catalog match
13	800-416 — Baffle tape No confirmed catalog match
14	800-439 — Baffle spacer Titan 800-439 (OEM)

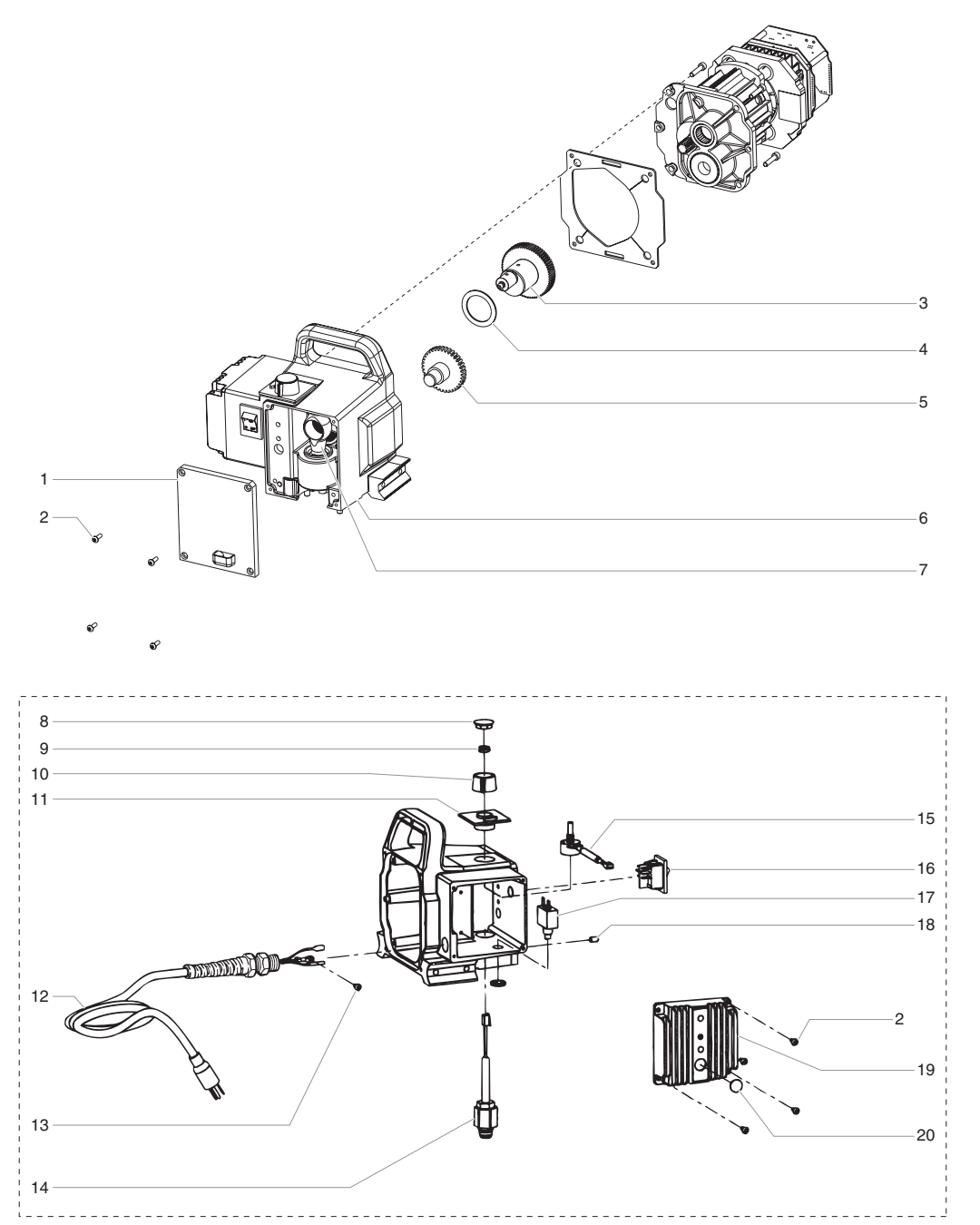

Gearbox Assembly

Power cord item 12 uses 800-079 for high rider models and 800-029 for low rider models. Item 19 is heat sink assembly 800-460. The manual refers to item 21 in its description, but the drawing and table end at item 20.

Enlarge drawingFull-size image

Titan 740i Gearbox Assembly numbered parts diagram

3 4 5 1 2 6 7 8 9 10 11 15 16 17 18 12 2 19 13 20 14

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	800-464 — Front cover w/label Titan 800-464 (OEM)
2	700-139 — Screw Titan 700-139 (OEM)
3	704-173 — Crankshaft/gear assembly Titan 704-173A (OEM)
4	704-174 — Thrust washer Titan 704-174 (OEM)
5	704-176 — 2nd stage gear Titan 704-176 (OEM)
6	800-067 — Gear box housing No confirmed catalog match
7	704-301 — Slider assembly No confirmed catalog match
8	700-175 — Cap Titan 700-175 (OEM)
9	700-176 — Seal Titan 700-176 (OEM)
10	700-159 — Pressure control knob Titan 700-159 (OEM)
11	800-274 — Potentiometer mount Titan 800-274 (OEM)
12	800-079 — Power cord assembly (high rider) 800-029 — Power cord assembly (low rider) No confirmed catalog match
13	704-229 — Screw No confirmed catalog match
14	800-101 — Transducer assembly Titan 800-101 (OEM)
15	800-461 — Potentiometer No confirmed catalog match
16	704-380 — On/Off switch Titan 704-380PRO (OEM)
17	765-327 — Circuit breaker No confirmed catalog match
18	710-127 — Set screw Titan 710-127 (OEM)
19	800-460 — Heat sink assembly (includes item 21) Titan 800-460 (OEM)
20	704-281 — Port plug Titan 704-281 (OEM)

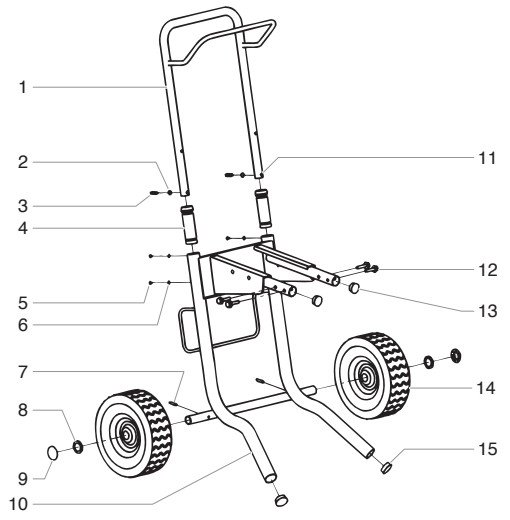

High Rider Cart

For high rider cart 800-570. Handle 800-463 includes items 2–6 and 11. Frame 800-462 includes plugs at items 13 and 15. Item 14 uses pneumatic wheel 800-593.

Enlarge drawingFull-size image

Titan 740i High Rider Cart numbered parts diagram

1 2 11 3 4 12 5 13 6 7 14 8 15 9 10

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	800-463 — Handle (includes items 2–6 and 11 Titan 800-463 (OEM)
2	590-506 — Washer Titan 590-506 (OEM)
3	590-508 — Roll pin Titan 590-508 (OEM)
4	590-504 — Sleeve Titan 590-504 (OEM)
5	856-921 — Screw Titan 856-921 (OEM)
6	856-002 — Washer Titan 856-002 (OEM)
7	704-291 — Roll pin Titan 704-291 (OEM)
8	704-354 — Spacer No confirmed catalog match
9	704-355 — Cap Titan 704-355 (OEM)
10	800-462 — Frame (includes items 13 and 15) No confirmed catalog match
11	590-507 — Snap button No confirmed catalog match
12	761-178 — Hex head screw Titan 761-178 (OEM)
13	710-199 — Plug No confirmed catalog match
14	800-593 — Wheel Titan 800-593 (OEM)
15	335-018 — Plug Titan 9885571 (OEM)

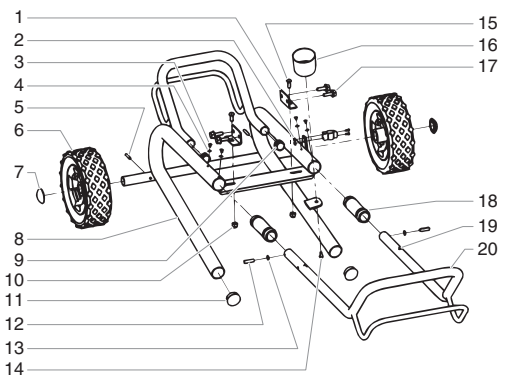

Low Rider Cart

For low rider cart 705-200. Item 6 uses wheel 800-468, item 8 uses frame 800-470, and item 20 uses handle assembly 800-469. Wheel spacer 704-354 at item 21 is not pictured.

Enlarge drawingFull-size image

Titan 740i Low Rider Cart numbered parts diagram

1 15 2 16 3 17 4 5 6 7 18 19 8 20 9 10 11 12 13 14

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	704-307 — Mounting bracket No confirmed catalog match
2	763-549 — Hex lock nut Titan 763-549 (OEM)
3	856-921 — Screw Titan 856-921 (OEM)
4	856-002 — Washer Titan 856-002 (OEM)
5	704-291 — Roll pin Titan 704-291 (OEM)
6	800-468 — Wheel No confirmed catalog match
7	704-355 — Cap Titan 704-355 (OEM)
8	800-470 — Frame (includes items 9 and 11) No confirmed catalog match
9	700-674 — Cap Titan 700-674 (OEM)
10	763-549 — Lock nut Titan 763-549 (OEM)
11	335-018 — Plug Titan 9885571 (OEM)
12	590-508 — Roll pin Titan 590-508 (OEM)
13	590-506 — Washer Titan 590-506 (OEM)
14	704-188 — Screw No confirmed catalog match
15	773-918 — Screw Titan 773-918 (OEM)
16	700-1041 — Drip cup Titan 700-1041 (OEM)
17	756-091 — Hex head screw Titan 756-091 (OEM)
18	590-504 — Sleeve Titan 590-504 (OEM)
19	590-507 — Snap button No confirmed catalog match
20	800-469 — Handle assembly (includes items 1, 3, 4, 12, 13, 18, and 19) No confirmed catalog match
21	704-354 — Wheel spacer (not shown) No confirmed catalog match

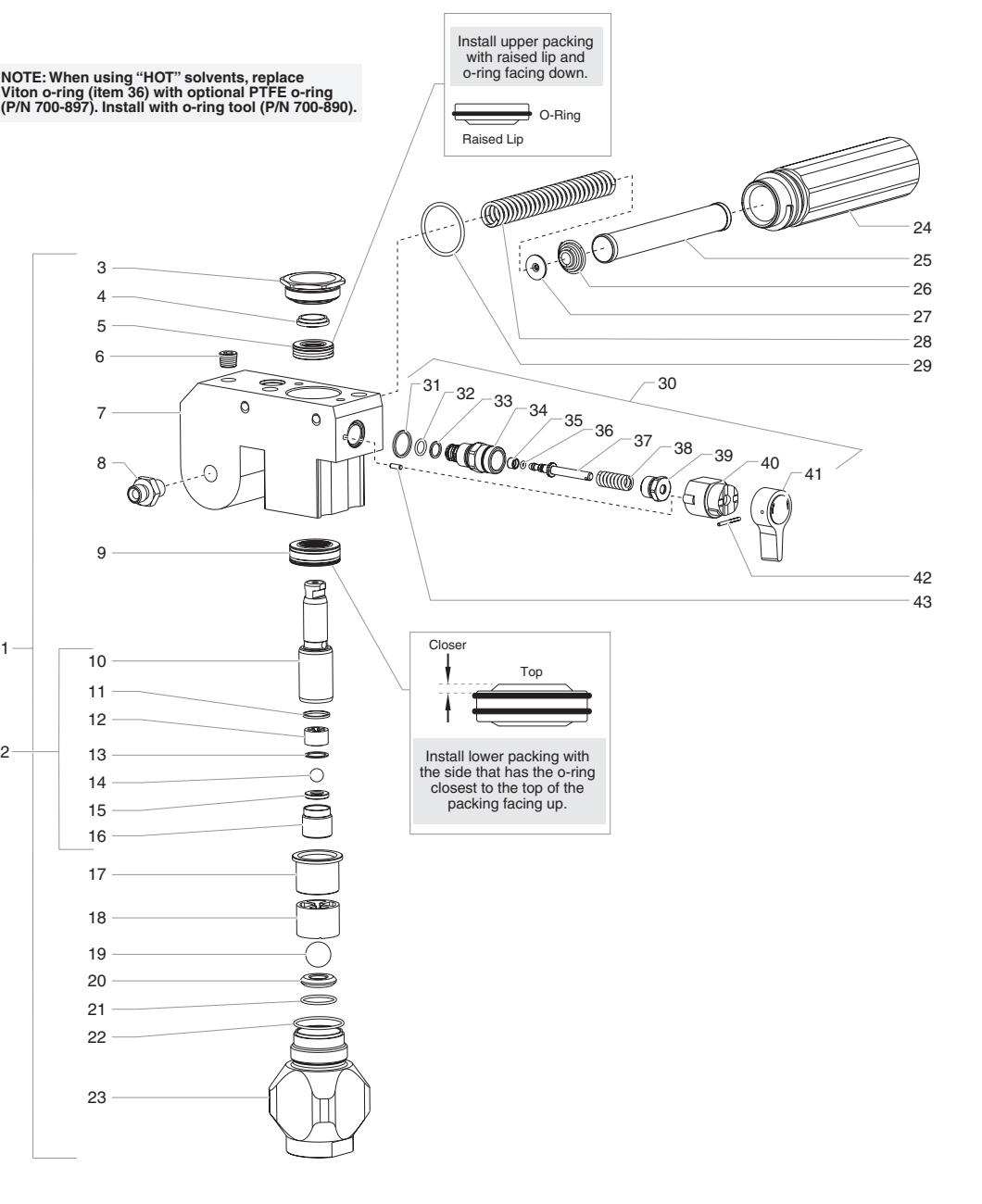

Fluid Section / Pump

Item 1: basic high rider fluid section 800-458 or low rider 800-466. Item 23: foot valve housing 705-106 (high rider) or 705-141 (low rider). Complete assemblies 800-459 (high rider) and 800-467 (low rider), repacking kit 800-450, and insertion tool 705-138 are listed separately. Item 25 includes alternative filter mesh choices. Optional PTFE O-ring 700-897 replaces the standard Viton O-ring at item 36. Fitting 704-273 at item 44 applies only to low rider models and is not pictured.

Enlarge drawingFull-size image

Titan 740i Fluid Section / Pump numbered parts diagram

24 25 3 26 4 27 5 28 6 29 31 30 32 33 7 34 35 36 37 38 39 8 40 41 9 42 43 1 10 11 12 2 13 14 15 16 17 18 19 20 21 22 23

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	800-458 — Fluid section, High Rider (excludes items 24–41) 800-466 — Fluid section, Low Rider (excludes items 24–41) Titan 800-458 (OEM) Titan 800-466 (OEM)
2	800-451 — Piston assembly (includes items 10–16) No confirmed catalog match
3	705-104 — Retainer nut Titan 705-104 (OEM)
4	705-105 — Piston guide Titan 705-105 (OEM) Bedford 44-2811 (Aftermarket) Bedford 44-2974 (Aftermarket)
5	800-454 — Upper packing assembly Titan 800-454 (OEM) Bedford 49-2817 (Aftermarket)
6	227-028 — Plug Titan 227-028 (OEM)
7	800-453 — Pump block (includes item 6) Titan 800-453 (OEM)
8	227-006 — Outlet fitting Titan 227-006 (OEM)
9	800-456 — Lower packing assembly Titan 800-456 (OEM) Bedford 49-2818 (Aftermarket)
10	800-452 — Piston rod Titan 800-452 (OEM) Bedford 57-2800 (Aftermarket)
11	800-348 — Upper seal Titan 800-348 (OEM) Bedford 8-2804 (Aftermarket)
12	800-441 — Upper cage Titan 800-441 (OEM) Bedford 44-2805 (Aftermarket)
13	800-245 — Nylon washer Bedford 8-2801 (Aftermarket)
14	800-247 — Outlet valve ball Bedford 9-2802 (Aftermarket)
15	800-243 — Outlet valve seat Titan 800-243 (OEM) Bedford 58-2761 (Aftermarket)
16	800-336 — Outlet valve retainer Titan 800-336 (OEM) Bedford 44-2803 (Aftermarket)
17	705-103 — Adapter Bedford 44-2809 (Aftermarket)
18	800-442 — Lower cage Titan 800-442 (OEM)
19	800-242 — Foot valve ball Titan 800-242 (OEM) Bedford 45184 (Aftermarket)
20	800-241 — Foot valve seat Titan 800-241 (OEM) Bedford 20-2776 (Aftermarket)
21	762-058 — O-ring Bedford 15-2123 (Aftermarket) Prosource 762-058PRO (Aftermarket) TITAN 762-058 (OEM)
22	762-103 — Lower seal Bedford 15-2128 (Aftermarket) ProSource 107098PRO (Aftermarket) TITAN 762-103 (OEM)
23	705-106 — Foot valve housing (High Rider) 705-141 — Foot valve housing (Low Rider) Titan 705-141 (OEM)
24	704-252 — Filter housing Titan 704-252 (OEM)
25	730-067 — Filter Titan 730-067 (OEM) Titan 730-067-10 (OEM) Titan 730-067-30 (OEM) Bedford 14-2096 (Aftermarket) Bedford 14-2097 (Aftermarket) Bedford 14-2098 (Aftermarket) ProSource 730-067(3PACK)PRO (Aftermarket) Prosource 730-067-10PRO (Aftermarket) Prosource 730-067-30PRO (Aftermarket) Prosource 730-067-60PRO (Aftermarket)
26	730-083 — Filter spring Titan 730-083 (OEM)
27	702-251 — Adapter Titan 702-251 (OEM) Bedford 44-3620 (Aftermarket)
28	757-105 — Filter support spring Titan 757-105 (OEM) Bedford 23-3129 (Aftermarket) ProSource 757-105PRO (Aftermarket)
29	704-297 — O-ring Titan 704-297PRO (Aftermarket) Titan 704-297 (OEM) Bedford 15-2762 (Aftermarket)
30	800-915 — PRIME/SPRAY valve assembly (includes items 31—43) Bedford 29-2835 (Aftermarket)
31	700-537 — Gasket Bedford 10-2109 (Aftermarket) TITAN 700-537 (OEM)
32	221-012 — O-ring, Viton Bedford 0-2105 (Aftermarket) TITAN 221-012 (OEM)
33	222-012 — O-ring, PTFE Bedford 6-2106 (Aftermarket) TITAN 222-012 (OEM)
34	700-253 — Valve housing Titan 700-253 (OEM)
35	800-910 — Valve seat Titan 800-910 (OEM)
36	700-721 — O-ring, Viton Titan 700-721 (OEM) Bedford 0-2111 (Aftermarket)
37	700-750 — Valve stem No confirmed catalog match
38	800-926 — Spring Titan 800-926 (OEM)
39	700-248 — Valve retainer Titan 700-248 (OEM) Bedford 45277 (Aftermarket)
40	700-251 — Cam base Titan 700-251 (OEM)
41	700-697 — Valve handle Titan 700-697 (OEM) Bedford 46-2619 (Aftermarket)
42	700-759 — Groove pin Titan 700-759 (OEM) Bedford 19-2618 (Aftermarket)
43	700-823 — Dowel pin Titan 700-823 (OEM) Bedford 19-2611 (Aftermarket)
44	704-273 — Fitting (Low Rider only, not shown) Titan 704-273 (OEM)
Complete HR	800-459 — Fluid section complete, high rider (includes items 1–43) No confirmed catalog match
Complete LR	800-467 — Fluid section complete, low rider (includes items 1–44) No confirmed catalog match
Kit	800-450 — Repacking kit (includes items 4, 5, 9, 11, 13, 14, 17, 19, and 20–22, as well as packing grease P/N 700-203 and lower packing insertion tool P/N 705-138) Titan 800-450 (OEM) Bedford 20-2810 (Aftermarket) Prosource 800-450PRO (Aftermarket)
Optional	700-897 — O-ring, PTFE (optional) Titan 700-897 (OEM) Bedford 15-2137 (Aftermarket)
Tool	705-138 — Lower packing insertion tool Titan 705-138 (OEM)

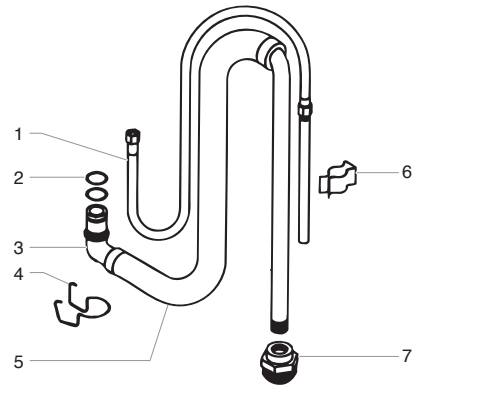

Low Rider Suction

For low rider suction set 704-300. Return hose 704-263 uses packaged 704-263A. Siphon hose 700-1023 includes items 2–4 and 7. Optional solvent-resistant O-ring 704-109 is listed separately.

Enlarge drawingFull-size image

Titan 740i Low Rider Suction numbered parts diagram

1 2 6 3 4 5 7

Select a part link to view current product details.

Item	Part / replacement choices · Back to drawing
1	704-263 — Return hose assembly Titan 704-263A (OEM) Prosource 704-263APRO (Aftermarket)
2	704-121 — O-ring Titan 9871105 (OEM) Bedford 0-2448 (Aftermarket)
3	700-1024 — Elbow Titan 700-1024 (OEM) Titan 700-1024PRO (OEM)
4	704-127 — Retaining clip Titan 9822526 (OEM)
5	700-1023 — Siphon hose (includes items 2–4, and 7) Prosource 700-1023PRO (Aftermarket)
6	755-135 — Clip No confirmed catalog match
7	700-805 — Inlet screen Titan 700-805 (OEM) Bedford 14-2081 (Aftermarket)
Optional	704-109 — O-ring (for hot solvents, optional) Titan 704-109 (OEM) Bedford 0-2887 (Aftermarket)
