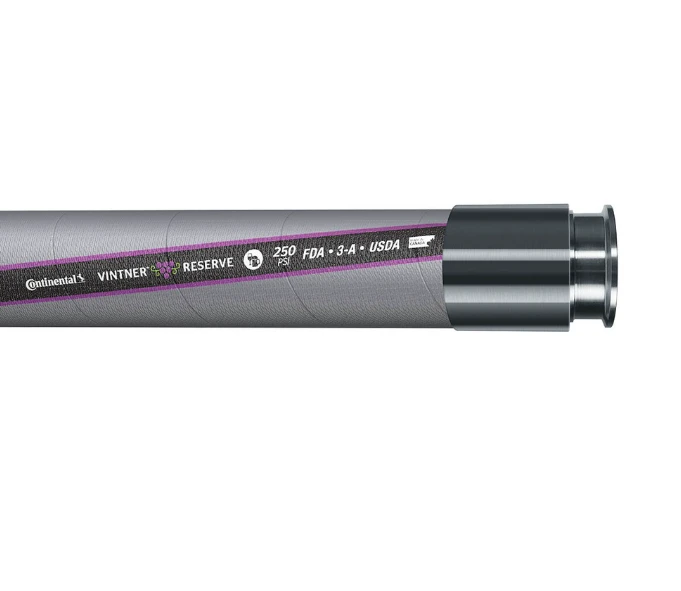

Vintner™ Reserve is primarily for liquid transfer in wineries, breweries and for beverage production for handling in-plant and/or tank truck transfer of wine, beer and other non-oily liquid foodstuffs
- Working Pressure: 250 PSI
- Temperature Range: -30˚F to 220˚F (-34˚C to 104˚C)
- Tube: White Chlorobutyl
- Cover: Gray EPDM synthetic rubber (wrapped)
- Reinforcement: Spiral-plied synthetic fabric with monofilament helix
- Couplings: Westco Sanitary 316ss Sanitary Tri-Clamps
- FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03
- Resistant to conventional cleaning agents and Cleaning in Place processes
| Part # | ID (in.) | OD (in.) | W.P. (psi) | Bend Radius (in.) | Vacuum HG (in.) | Weight (lb./ft.) |
|---|---|---|---|---|---|---|
| 20991699 | 1 | 1.56 | 250 | 3 | 27 | 0.60 |
| 20992570 | 1 1/2 | 2.06 | 250 | 4 | 27 | 0.83 |
| 20992571 | 2 | 2.61 | 250 | 7 | 27 | 1.18 |
| 20992572 | 2 1/2 | 3.16 | 250 | 10 | 27 | 1.59 |
| 20992573 | 3 | 3.81 | 250 | 12 | 27 | 2.34 |
