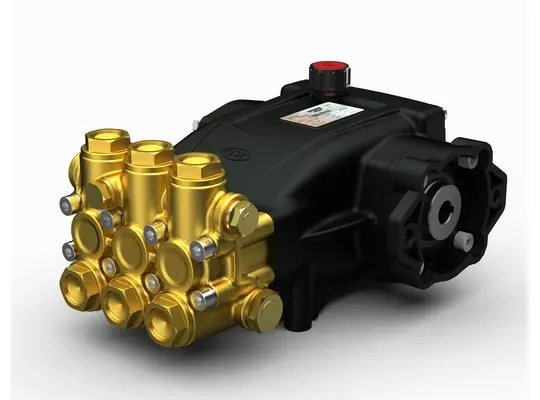

Veloci 49.2121 Mazzoni MMD12250R-HY

Manufacturer part number: 49.2121

PART NUMBER	MODEL	GPM	PSI	RPM	HP	BORE	STROKE	SHAFT
P3.020.201	MMD12250R-HY	3.17	3625	1450	9.35	20 mm/0.787 in	9.7 mm/0.381 in	Right

Italian manufactured high-pressure pumps:

• PUMPS WITH FLANGE FOR CONNECTION WITH HYDRAULIC MOTOR.
  SAE-A ROUND 15.9 mm / 0.626 ”- Over dimensioned and rectified guide piston rods to reduce friction during sliding and better oil seal.
  – Oversized shaft with a terminal for better torque transmission.
  – Very thick ceramic pistons for longer life.
  – Intake and delivery valves with increased water passages.
  – Oversized beakers made with a special anti-friction alloy.
  – Head pump in forged brass with a design for high resistance.
  – Double seal sealing system.
  – Ball bearings
  – Sturdy design pump body.
  – “U” seals
